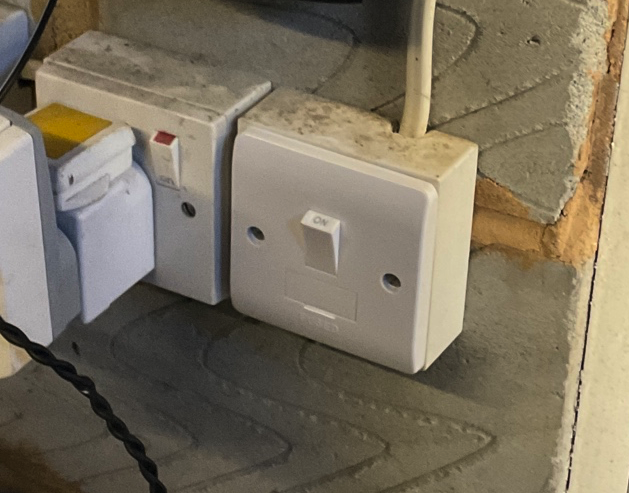

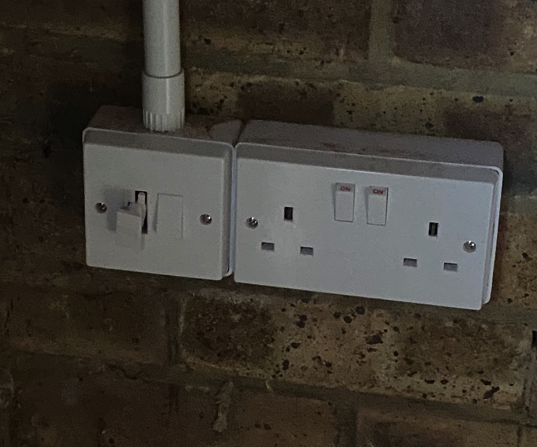

A switch fused spur is a device that is used to control and protect electrical circuits. It is commonly used in situations where there is a need to isolate an electrical appliance or circuit from the main power supply. It is typically installed in areas such as bathrooms, kitchens, and utility rooms, where electrical appliances are frequently used.
The switch fused spur is essentially a switch and a fuse combined into one unit. The switch is used to turn the electrical appliance on and off, while the fuse protects the circuit against overloading and short-circuits. It is important to use the correct fuse in a switch fused spur to ensure that the circuit is protected and the appliance operates safely.
The correct fuse to use in an switch fused spur depends on the power rating of the electrical appliance that it is protecting.

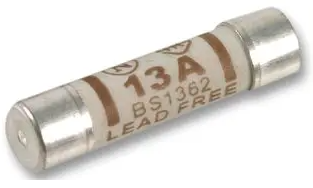

In the UK, fuses are rated in amps, and the correct fuse rating for an appliance can usually be found on a label attached to the appliance or in the manufacturer's instructions.

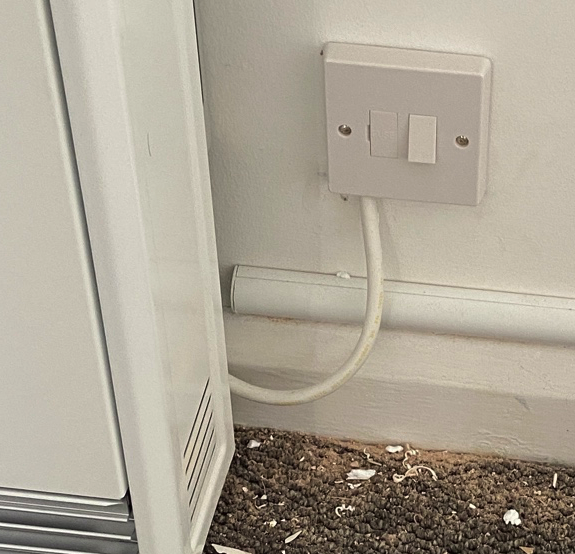

For example, if you have a 1000 watt electric heater that you want to connect to a switch fused spur, you need to calculate the current that the heater will draw. The formula to calculate current is as follows:
Current (amps) = Power (watts) ÷ Voltage (volts)
In the UK, the voltage is usually 230 volts.
Using this formula below, we can calculate that the current drawn by the 1000 watt electric heater is:
Current (amps) = 1000 watts ÷ 230 volts = 4.35 amps
Therefore, the correct fuse to use in the switch fused spur for the 1000 watt electric heater is a 5 amp fuse. This will provide protection against overloading and short-circuits, ensuring that the circuit operates safely.
It is important to note that using a fuse with a higher rating than required can be dangerous, as it can allow too much current to flow through the circuit, increasing the risk of overheating and potentially starting a fire. On the other hand, using a fuse with a lower rating than required can cause the fuse to blow too often, leading to frequent replacement and potentially damaging the appliance.
In conclusion, the correct fuse to use in a switch fused spur depends on the power rating of the electrical appliance that it is protecting. It is important to calculate the current drawn by the appliance and use a fuse with a rating that provides protection against overloading and short-circuits. Using the correct fuse will ensure that the circuit operates safely and protect against the risk .

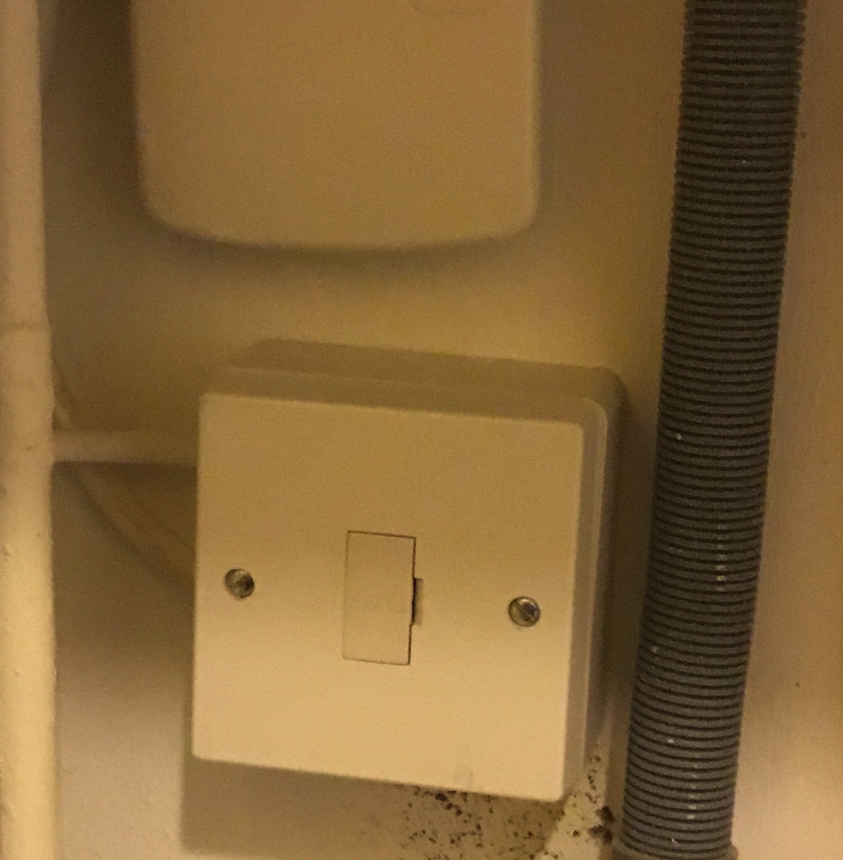

An unswitched fused spur is an electrical component that provides a safe way to connect an appliance or device to the mains electricity supply. It is a single-gang electrical socket that is fitted with a fuse to protect the circuit from overloading and short circuits.
The unswitched fused spur is a popular choice for many domestic and commercial applications, as it offers a safe and convenient way to connect electrical devices without the need for a separate switch. This makes it ideal for devices that need to be powered continuously, such as heating systems or security alarms.
When properties have had extensions or conservatories, it is normally installed for the protection of the lighting circuit, should you lose lights in your conservatory, but your socets are still working, then the majority of the time is that the fuse has blown, have a look around to find the fused spur, simply by changing the fuse you can have your lighting restored, should this not be the case, please give us a phone call at Bright Spark Electrical Services, and we can help you out.
One of the key benefits of an unswitched fused spur is that it provides an additional level of protection against electrical faults. The fuse in the unit will automatically cut off the power supply if there is a fault, such as a short circuit, preventing damage to the appliance and the surrounding area.
In addition, an unswitched fused spur can also help to reduce the risk of electrical fires. By providing a separate point of isolation for each device, it makes it easier to turn off power to a specific appliance in the event of an emergency, without affecting other devices on the same circuit.
For further information about Fuse Selection, please click here to find out more. https://www.brightsparkelectrician.co.uk/knowledge-centre/electrical-safety/fuse-selection/
