There are a couple of ranges for the Heaters.
On this page we explain about the D Series Range.

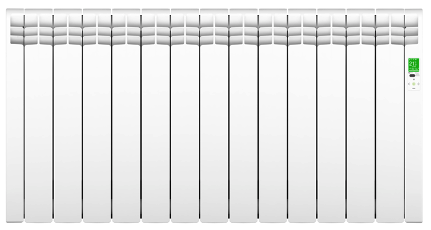

100% Aluminium Radiator Design
The D-SERIES Radiators stand out among all other heating products on the market due to a new curved design, with frontal dissipation blades that permit natural air circulation, allows the radiator to reach the desired temperature in record time.
The D-SERIES Radiators boast important improvements in quality, replacing the older plastic fittings, as the sides of the radiator are finished with our new SLIM LINE ALUMINIUM material, with their patented Rointe anchoring system, guaranteeing visual continuity.
Fuzzy Logic Energy Control
Low consumption technology that allows optimising the radiator’s energy consumption, making it possible to reach a non-consumption coefficient of 62% of nominal power.
Multiple finishes
The new D Series Radiators are available with many different finishes: white, a range of RAL colours or in the black forge finish. Check out our colour chart!
Tactile control panel
Advanced control on the radiator thanks to the Tactile Control Panel with 5 buttons and 1.77″ TFT screen with visual menus for navigating through the advanced functions.
100% Aluminium Design
Curved product finished with aluminium side panels, in keeping with the unified visual aesthetic of the radiator, generating the visual sensation of a smooth, sleek device.

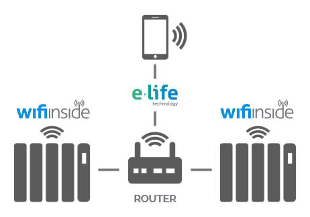

Direct, Instant Wi-Fi Communication without gateways
The link between the inbuilt Wi-Fi and E·Life technology makes the D Series the only radiator that does not need gateways or intermediate terminals to connect via the Internet using your home or office router with the Rointe Connect App.
The connection between this heating device and the E·life servers is established directly via WiFi, providing an immediate response capacity of 270 milliseconds. The changes you make in the App will be reflected instantly in your radiator!
E·life Technology
Home automation allows the individual management and control of each heater via the Internet, simple and easily.
True Real Power
The True Real Power electricity reading allows you to see the individual product or full installation’s real energy consumption at any time.
Consumption Statistics
Detailed control from the Rointe Connect App using Statistic Parameters such as consumption, cost, control, etc.
1.77″ Screen
1.77” TFT Screen for optimal viewing from any angle with user-adjustable background colour through the App.
Fuzzy Logic Energy Control –
the latest advance in energy savings technology
Fuzzy Logic Energy Control is the Low Consumption technology developed by the R&D department of Rointe and applied to the D Series Radiators. The use of Fuzzy Logic Energy Control technology was tested by independent laboratories, and proven to save up to 62% in comparison to heating devices with no thermostat.
Designed to offer maximum comfort, Rointe electric radiators utilise natural air convection.
We install these heaters at the recommend mounting on the wall at a height between 10 and 15 cm from the floor. This guarantees the best natural convection throughout the room.
The electric radiators have a unique design: cold air is introduced at the bottom of the radiator and raises its temperature by passing through the interior of the element and expelling at the top as warm air.
This creates a heated air circulation with an airspeed of 0.1 m/s and allows a constant room temperature with a small variation of only +/-0.25ºC. Therefore, they are able to increase comfort and reduce consumption.
Resistance: Armoured Steel
Design: Curved with SLIM LINE ALUMINIUM side closures
Material: High purity Aluminium
Heat Conductor: Thermal oil
Control: control panel with tactile keyboard
Product weight: from 7.7 Kg to 32.1 Kg
Packaged weight: from 8.8 Kg to 33.2 Kg
Finishes: RAL 9016 White / Black Forge effect / RAL colours (ask for RAL chart)
Nominal Power: 110 W per element
Effective Power: 38% = 41,8W per element
Voltage: ~230 V
Electricity: from 1.5 A to 7 A
Functionalities
TFT (1,77”) Screen
De-icing/Eco/Comfort Mode
New User Mode
Manual/Automatic function
Screen brightness control
Nominal and effective power
Open windows function
24/7 programmability (tactile panel, Rointe Connect App and/or AIR Control remote)
Performance and Security
Fuzzy Logic Energy Control
E·life Technology & Wi-Fi Inside
True Real Power Meter
Rointe ULP32 Microcontroller
Wireless Wi-Fi Communication
Infrared data transmission
Temperature Stability: ±0.07°C
Air speed: 0.1m/s
Power per element: 110 W
Safety thermostat
Average surface temperature during the steady period: 40°C
Degree of protection: IP24C
2004/108/CE Electromagnetic Compatibility Certification
2006/95/CE Electronic Security Certification
Customer satisfaction always comes first for us. That's why the D Series electric radiator includes 20 years guarantee on the aluminium body and 3 years on the electrical components.
By Purchasing & having your Rointe Heater installed by their Approved Appointed Installer Bright Spark Electrical Services, all customers have their 3 year Guarantee on electrical components extended by another 3 years totalling 6 years for peace of mind.
By Purchasing your Heater through Bright Spark, Bright Spark are able to offer around 30% off the Regular wholesale price for which we pass onto our customers. (This is the price to you in your quotation).
No. Elements: Width x Height x Depth
3 elements: 350mm x 585mm x 97mm
5 elements: 510mm x 585mm x 97mm
7 elements: 675mm x 585mm x 97mm
9 elements: 835mm x 585mm x 97mm
11 elements: 992mm x 585mm x 97mm
13 elements: 1.160mm x 585mm x 97mm
15 elements: 1.320mm x 585mm x 97mm
Let us help you upgrade your electric heating. Choose from various stylish finishes to match your decor. All electrical installations are to the Electrical Regulations BS7671, with Bright Spark being on the Electrical Safety Register, Part P compliant, and rest assured members of the NICEIC.
Our pricing is straightforward and transparent - no surprises. Please see Pricing
As Part P certified electricians, we'll assess your current setup and recommend the safest, most practical solution for your needs
Ready to upgrade your lighting or add more outlets? or reach out through our website.
Thanks for reading! We hope this was of use to you. If you have any questions or suggestions, please feel free to let us know.
To book a very helpfull & knowledgeable and qualified Bright Spark Electrical Engineer to carry out a Survey, and provide a Free of Charge Quotation, fill out our simple form to visit your home. click [Click this Link]
For further Information, please do not hesitate to contact us.
